Douglas SBD-1 Dauntless, USMC 2-MB-13
1
October 29, 20212
October 29, 2021Correct diameter but too deep….🙁3
October 29, 20214
November 5, 2021Correct diameter and correct depth🙂5
November 5, 20211,5 mm brass tube glued into 2 of 6 holes on the front of the motor. 2. Attempt fits.6
November 5, 20217
November 5, 2021Brass tubes glued with CA to the front of the fuselage.8

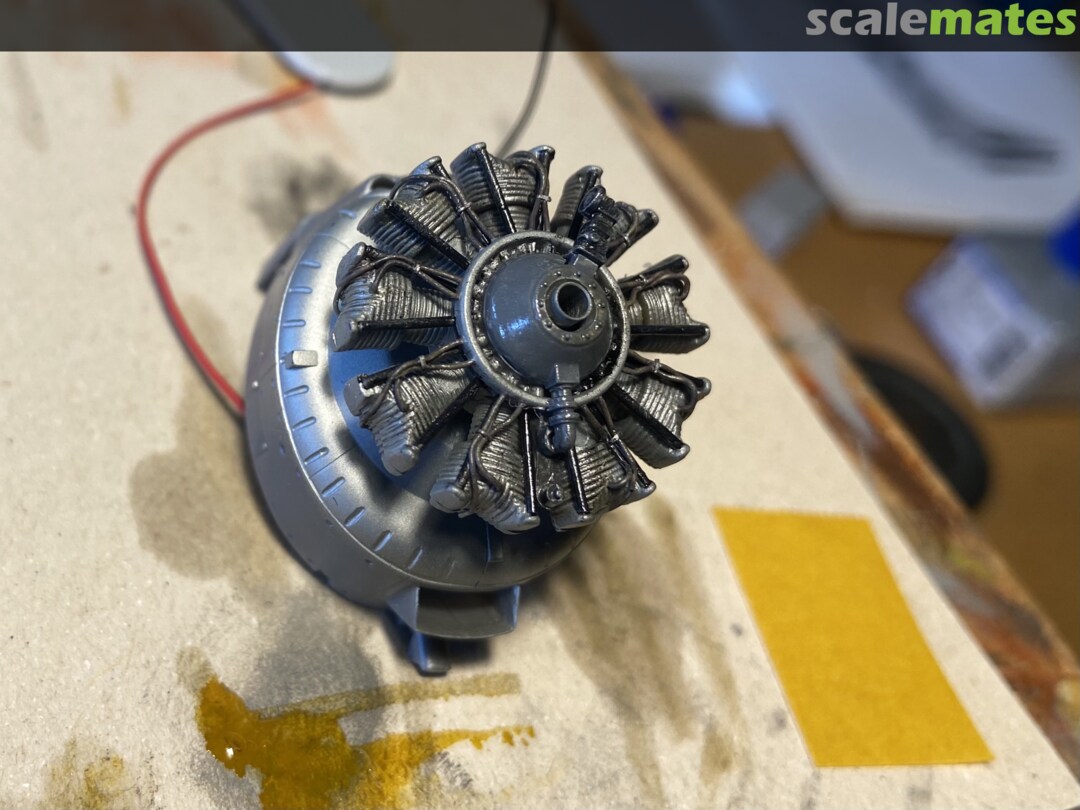

November 6, 2021Engine from the kit. I found the pushrods and ignition wires too massive and removed them. New pushrods of 0.6 mm round rod in place. Wires coming at next.9
November 6, 202110
November 6, 202111
November 7, 202112
November 7, 202113
November 8, 20211,5 mm brass tube as connector for power supply (3 V DC)14
November 13, 2021Its easier to fit the flaps to the wing before installing the wing to the fuselage.15
November 13, 202116
November 18, 2021Very good fit.17
November 18, 202118
November 18, 202119
November 18, 2021Connection cables successfully soldered.20
November 18, 2021Connection points for inflight configuration and voltage supply for the motor.21
November 18, 202122
November 20, 2021LSO light (red, green, amber). 1st step: cut out cleaned, rear plate added (0,13 mm plastic), 3 lights (punched with 0,8 mm flattened needle) from colored self adhesive foil.23
November 20, 2021Step 2: transparent cover made of narrow strip of Tesa tape.24
November 20, 2021Step 3: masked with an externally cutted mask (Tamiya tape).25
November 21, 2021Green is a mix of H131 and H2.26
November 21, 202127
November 21, 202128
November 28, 202129
November 28, 202130
November 28, 202131
November 28, 202132
November 29, 2021The result of a good modeling day🙂33
November 29, 202134
November 29, 202135
November 30, 2021Last airbrush session: dark grey as antiglare panel.36
November 30, 2021Unfortunately red and yellow are in the wrong place 🙁 so I had to fix them.37
November 30, 202138
December 5, 2021On course again: yellow stripe is now correct in the middle.39
December 5, 202140
December 5, 2021For in flight configuration you don’t need the landing legs.41
December 22, 2021Ground plate 1 (left): 40 mm Bambus & printed Dibond sandwich plate.42
December 22, 2021Ground plate 2 (right): 40 mm Bambus & printed Dibond sandwich plate.43
December 22, 2021Both ground plates together.44

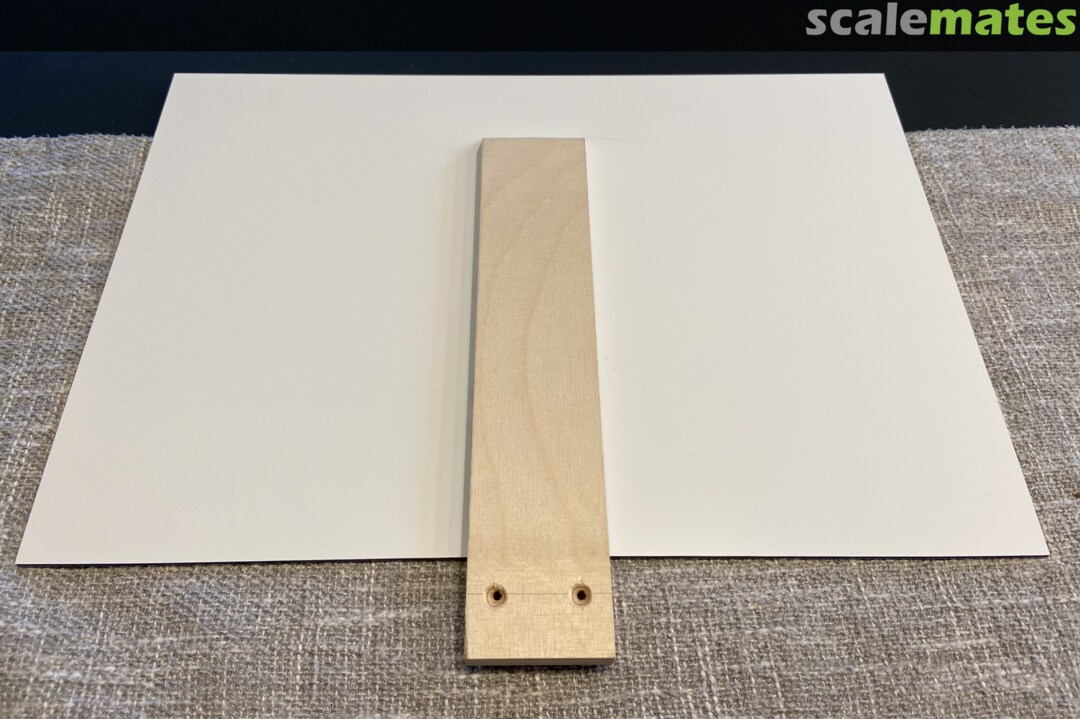

December 22, 2021Rear panel 1 (left): printed Dibond sandwich plate & 12 mm birch wood Mux plate 250x50 mm45
December 22, 2021Both rear panels together.46
December 22, 202147
December 22, 2021Both displays together minus attachments for the SBD’s (2-MB-13 and Hanno’s 2-MB-1) and batteries.48
December 22, 202149
December 22, 202150
December 22, 202151
January 10, 2022Result of the group build: both planes of the VMB-2 together… (right flies the squadron leader, Hanno’s MB-1🙂)52
December 22, 202153
January 10, 202254
January 10, 202255
January 10, 202256
January 10, 202257
January 10, 202258
January 10, 202259
January 10, 202260
January 10, 202261
January 10, 2022
